Minerva mod. CH 1052
Italy -1962
Minerva mod. CH 1052 - Italy 1962.

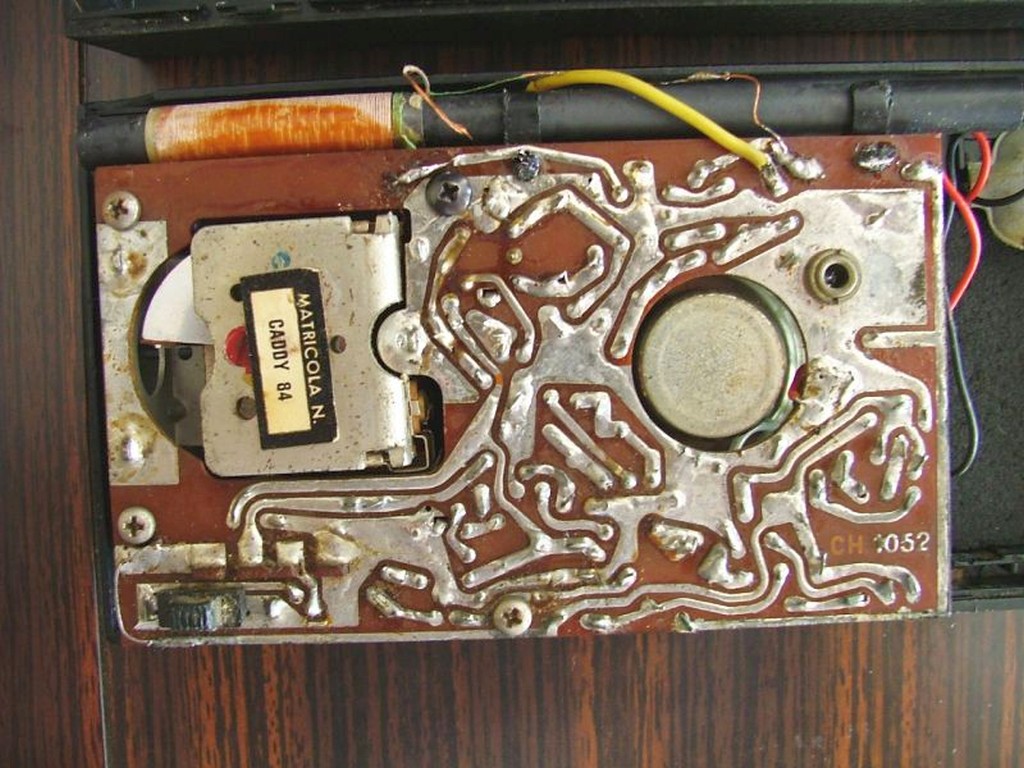

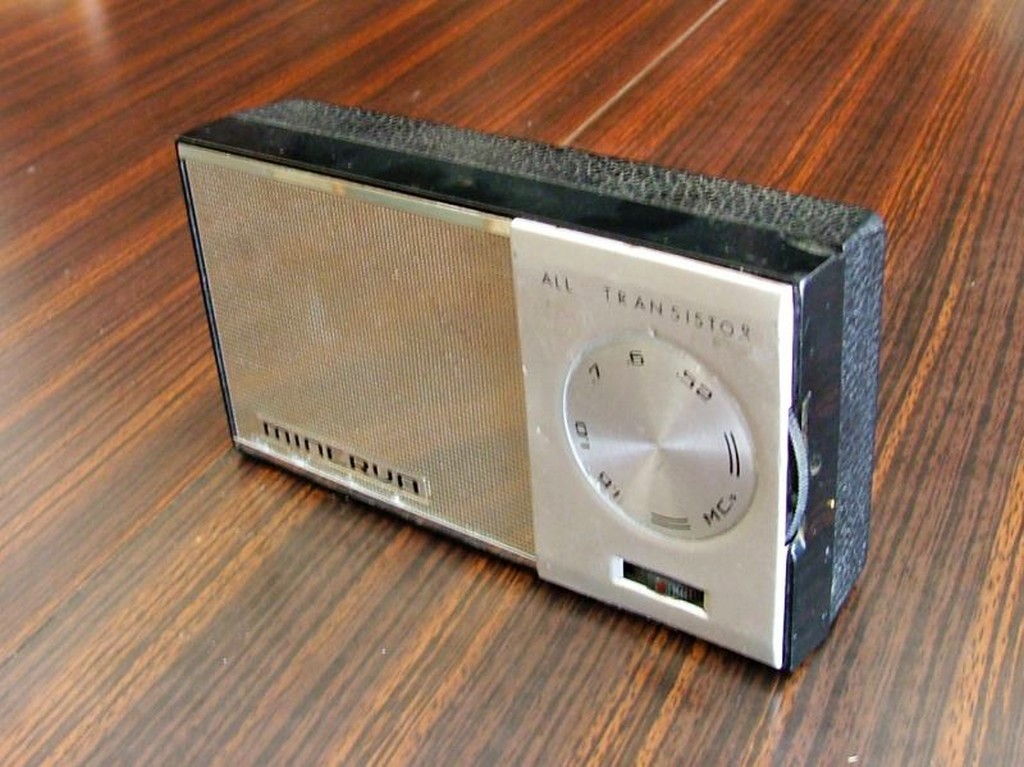

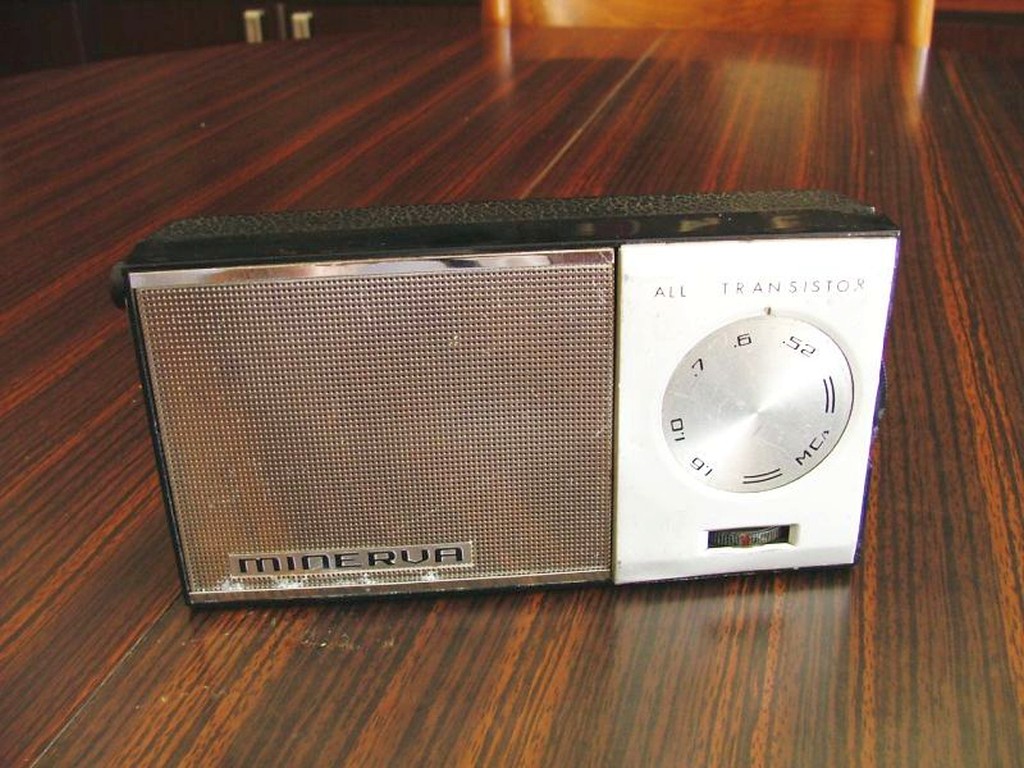

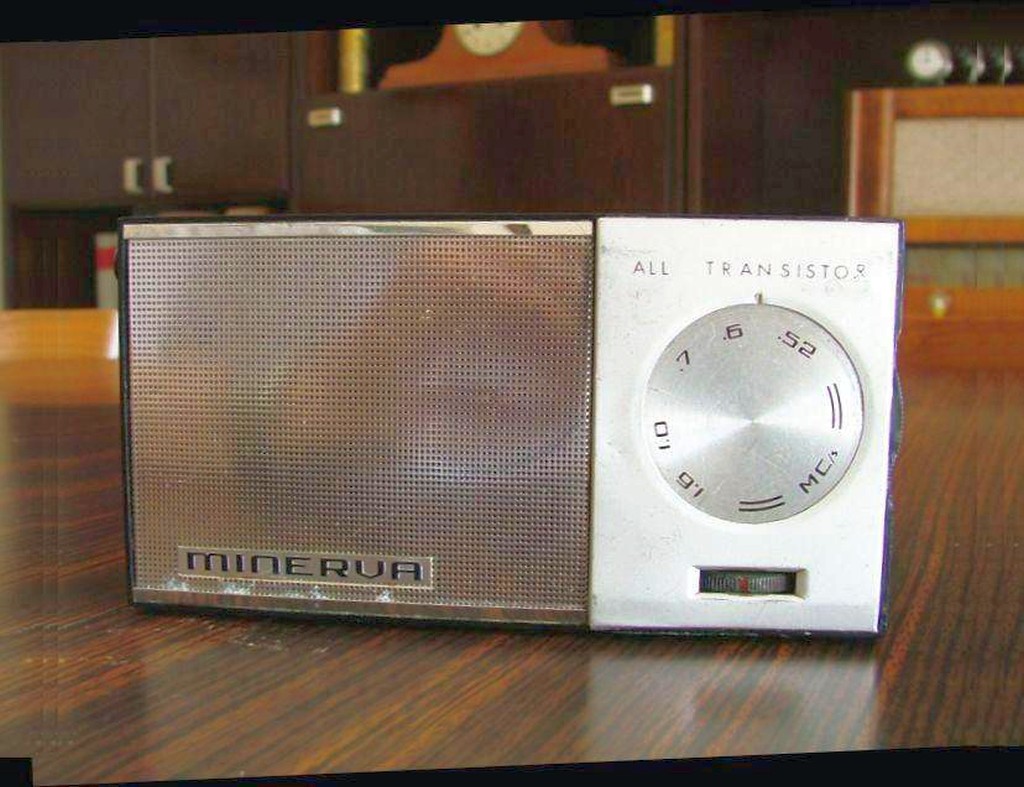

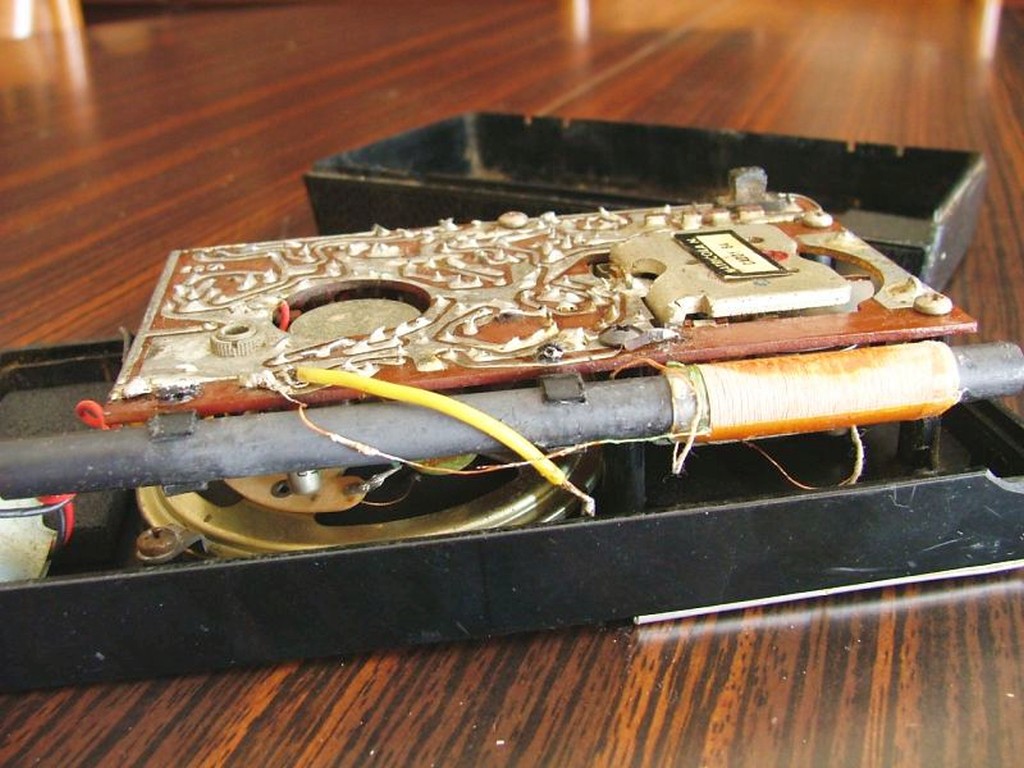

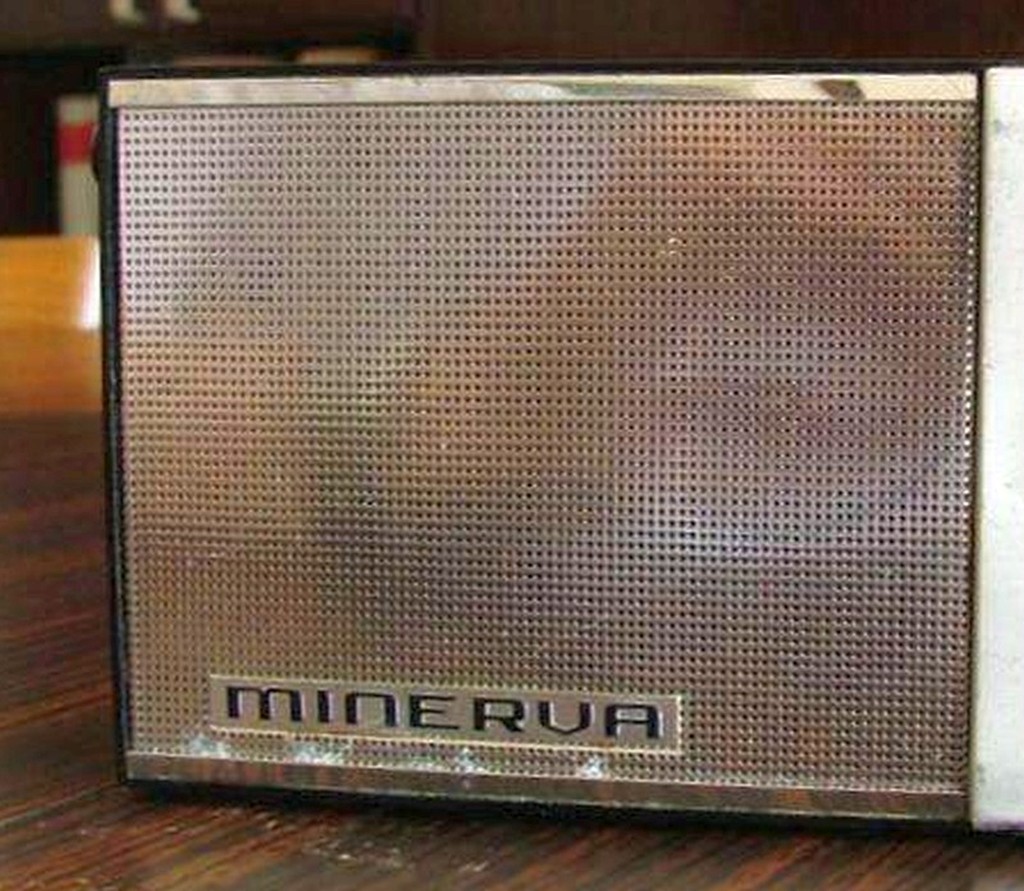

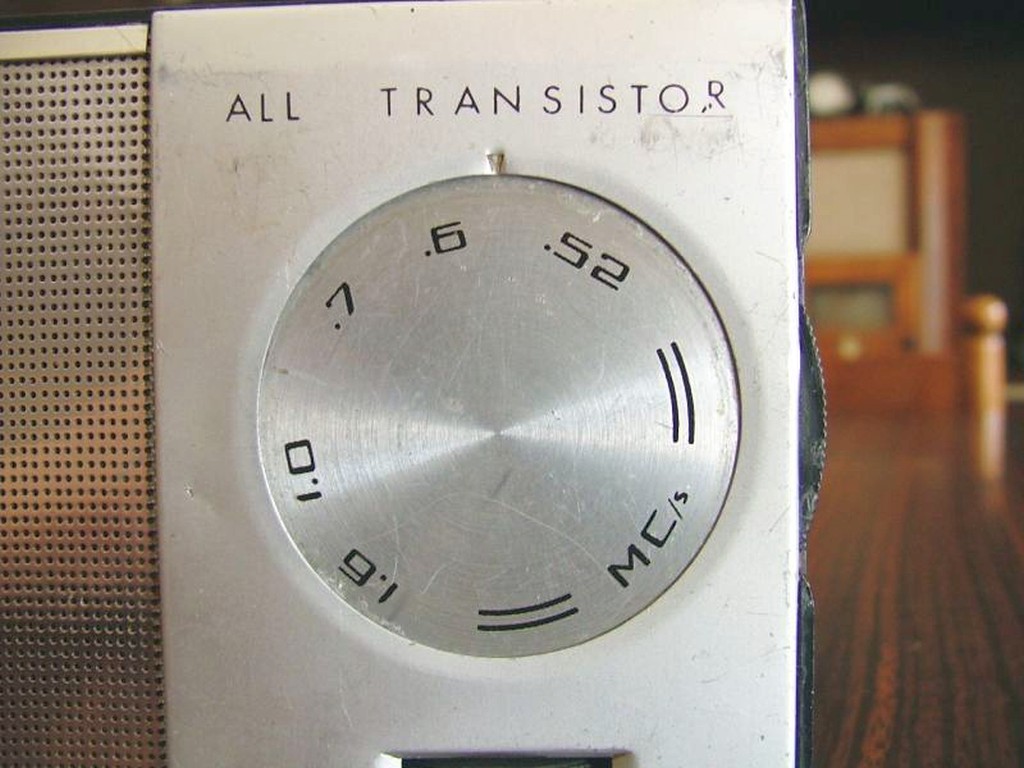

Portable superethrodyne receiver for MW band, internal ferrite antenna, plastic case with aluminium front panel. Power requirements: one 9 V transistor battery. Dimensions: 6.5 x 3.5 x 1.6 inch.

© IK3HIA, 2006.

click to enlarge click to enlarge click to enlarge
click to enlarge click to enlarge click to enlarge
Minerva mod. CH 1052 - Italia 1962.

Ricevitore supereterodina portatile per banda delle Onde Medie, antenna interna in ferrite, mobiletto in plastica con frontale in alluminio. Alimentazione tramite una batteria da 9 V tipo transistor. Dimensioni: 16,8 x 9 x 4 cm.

© IK3HIA, 2006.
click to enlarge click to enlarge click to enlarge
click to enlarge click to enlarge click to enlarge
click to enlarge click to enlarge
