RECEIVER  R89/ARN5A - S.T.T.A - France 1956

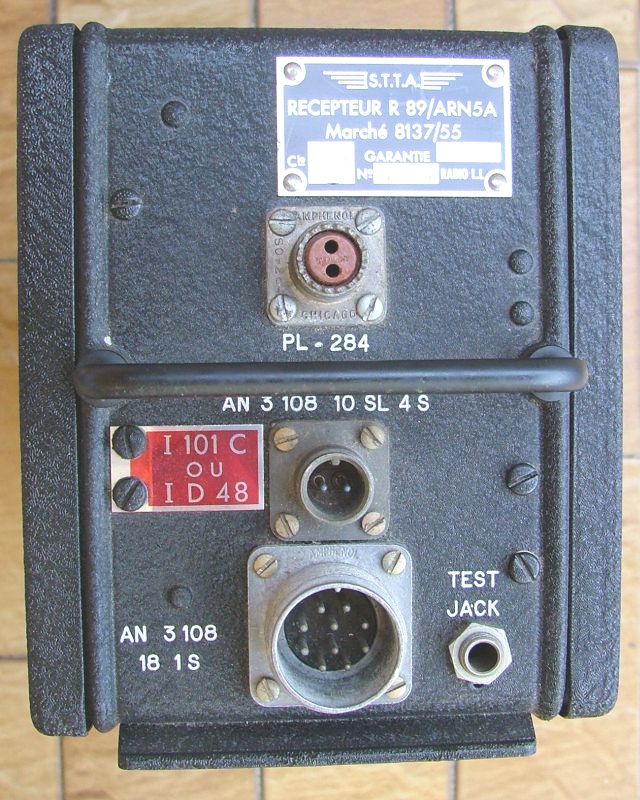

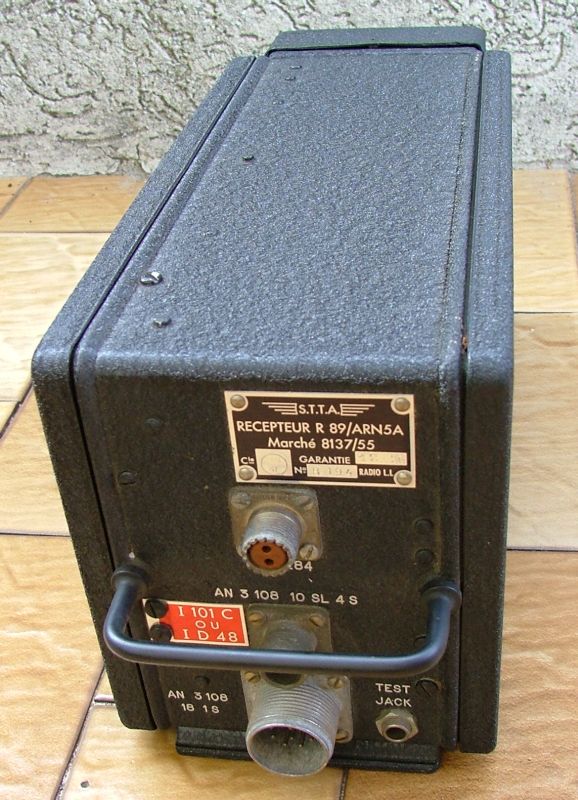

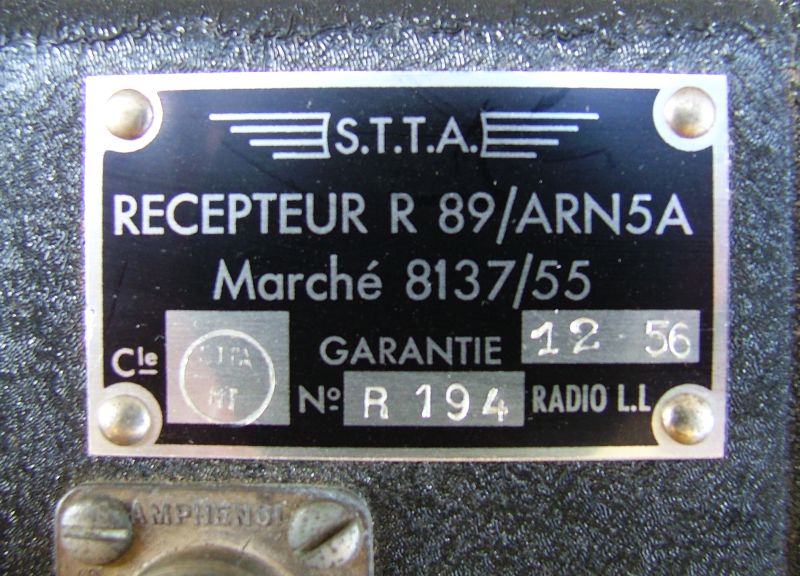

R89/ARN5 - Click to enlarge R89/ARN5 - label - Click to enlarge R89/ARN5 - front panel - Click to enlarge

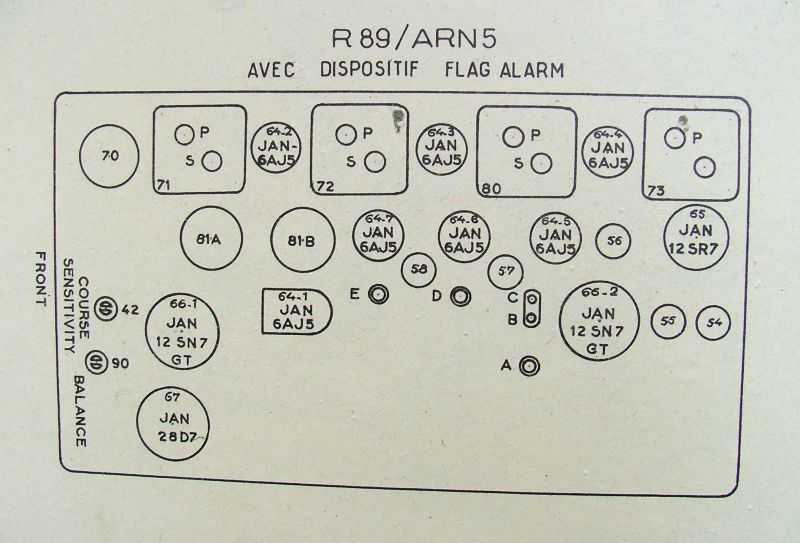

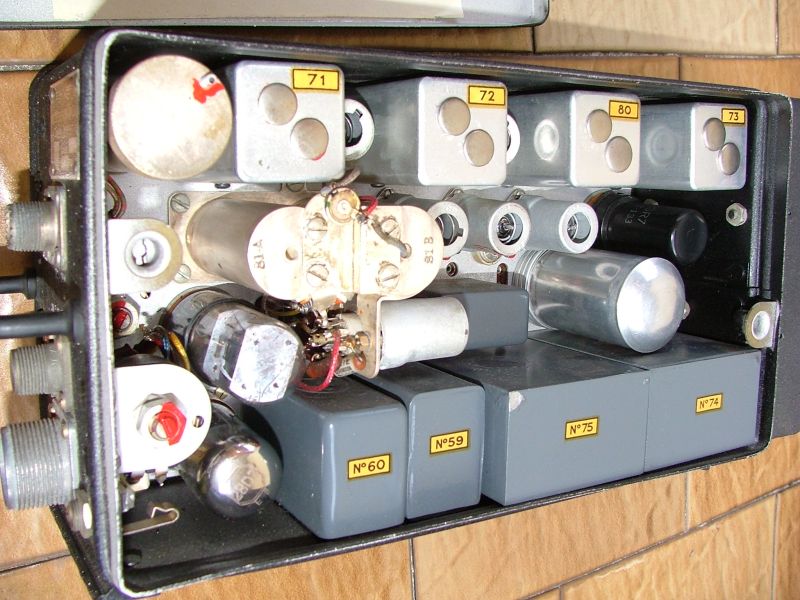

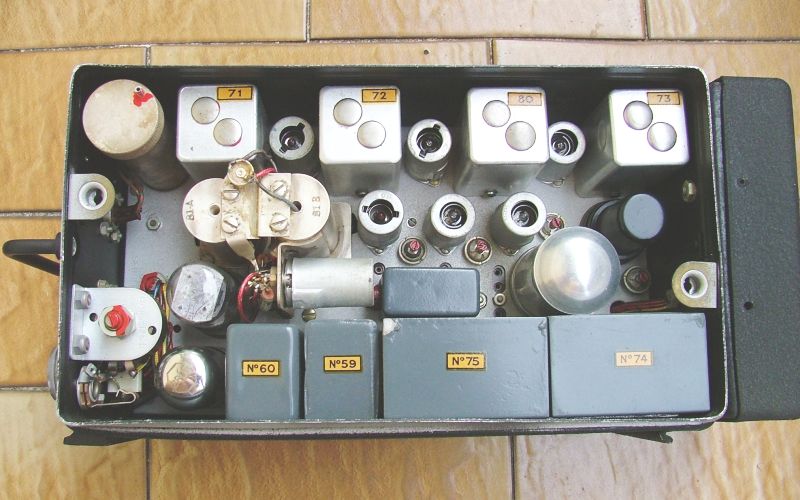

R89/ARN5 - top view - Click to enlarge R89/ARN5 - components layout - Click to enlarge R89/ARN5 - Tuned cavities - Click to enlarge

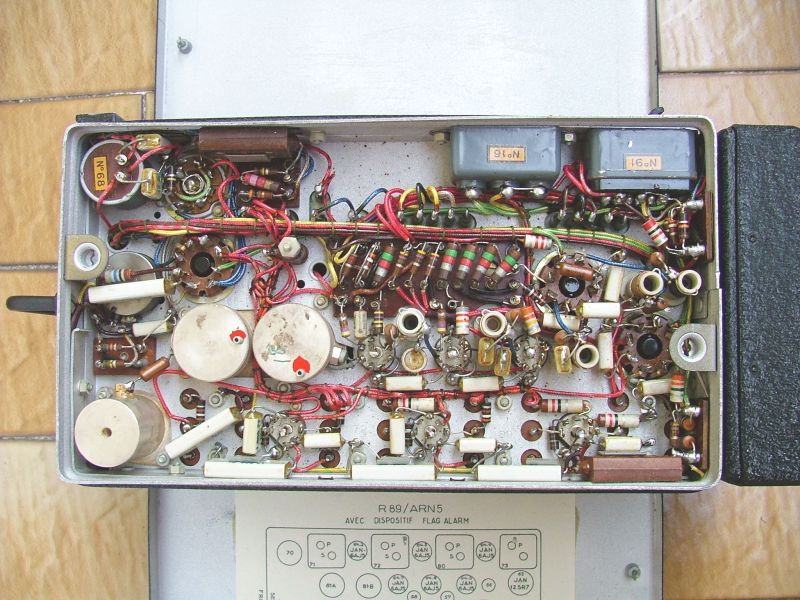

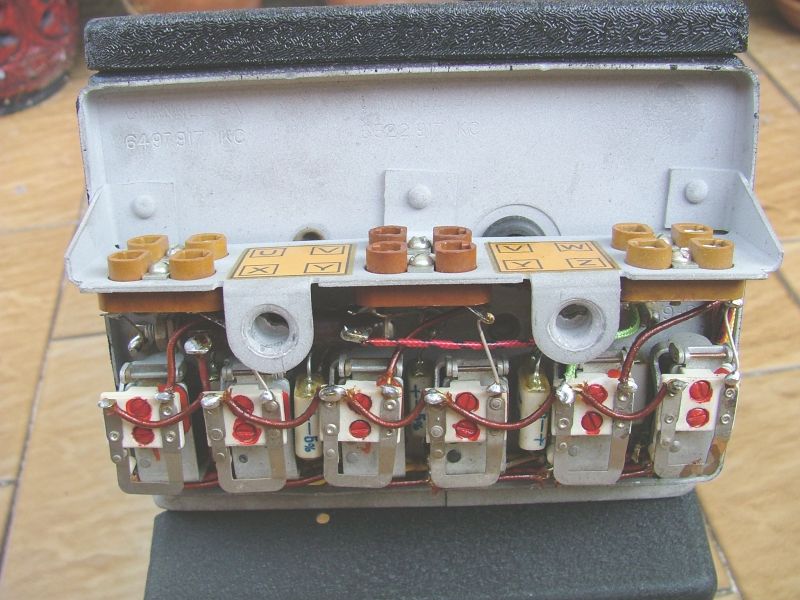

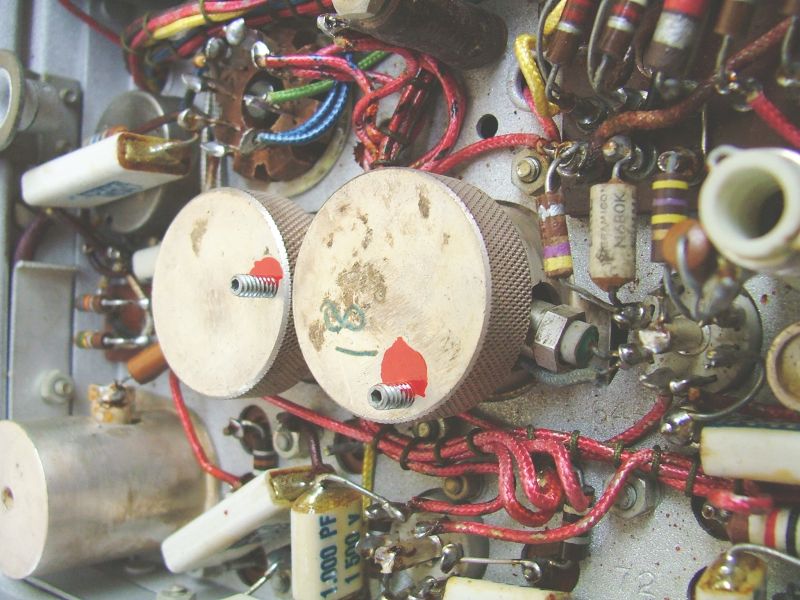

R89/ARN5 - Click to enlarge R89/ARN5 - back crystals holder - Click to enlarge R89/ARN5 - bottom view - Click to enlarge
Air receiver for instrumental landing mod. R 89/ARN5 - S.T.T.A - France (1956). The unit have 3  crystal controlled channels in the frequency band from 332 to 335 MHz. Employ 10 tubes: (7) 6AK5, (2) 12SN7, (1) 12SR7, (1) 28D7. Power requirements: 28 Vdc
Ricevitore aereonautico per atterraggio strumentale mod. R89/ARN5 - S.T.T.A - France (1956).  L'unita' ha 3 canali controllati a quarzo nella banda di frequenze da 332 a 335 MHz. Impiega 10 valvole: (7) 6AK5, (2) 12SN7, (1) 12SR7, (1) 28D7.  Alimentazione a 28 Vdc.
